The VHS Series of levelling mounts provides a secure, high-precision connection between the ground and the machine.

Precision Levelling Mounts- Achieve Perfect Stability for Heavy Machinery, Series VHS

The VHS Series of levelling mounts provides a secure, high-precision connection between the ground and the machine. In case of large and long bedded machinery, Dynemech Festofix VHS Series provide strong, stable foundations, vibration reduction and accurate alignments of all allied elements.

The precision levelling mounts when equipped with vibration isolation plates, unique design absorbs impulses and shocks in high-speed machinery, where vibration damping is especially critical.

The VHS series levelling feet include an integral locking device that prevents movement during installation and relocation of the machine. Includes a horizontal deviation / vertical deviation preventing mechanism. The machined top spherical seat that compensates for misalignment between the machine base and the foundation.

Benefits of Festofix Precision Levelling Machinery Mounts :

• Compact and robust design to effectively anchor machinery within the space constraints. Each part is designed to incorporate thickness to adjust to abrupt loads

• Built-in compensation for uneven areas in foundations and machine bases.

• Additional spherical washers, to compensate for uneven support surfaces and floors, wherein the displacement value in relation to the load is very small too.

• Spherical top machined for maximum contact.

• Precision and accurate alignment for machines

• Rigid support to achieve maximum machine-foundation stiffness

• Low overall height to ensure a low machine centre of gravity.

• Horizontal & Vertical deviations are contained.

• Facility to carry out subsequent alignment readjustments with low torque requirements.

• Quick and easy installation for large and long bedded high precision machinery

• Designed for vibration reduction along with levelling adjustment

• Options of both on and bolt thru mechanisms

• Elastomeric Anti Vibration Plates are customizable based on thickness , surface profile and natural frequency desired.

Applications: For the Levelling, Adjustment & Fixation of Large Machinery and other Heavy Machine Tools / Equipment in industries like industrial machining, production machinery , packaging, power generation, etc.

• Machine tools like Long-bedded Lathes

• Roll Grinders, Plano-millers and Grinders,

• Die-casting and Plastic Injection Moulding Machines

• Generators

• Automotive transfer lines

• Turbines

• Horizontal and Vertical Machining Centres

• Compressor units

• High-Speed Boring and Milling Machines

• Boilers

• Large Process machinery

• Printing machinery

•

#PrecisionLevellingMounts, #Festofix, #MachineryStability, #VibrationReduction



Contact:

Dynеmеch Systеms Pvt Ltd.

Mob: +91-9810760131 ;

Email: sales@dynemech.com

www.vibrationmountsindia.com



Securing Accuracy: Dynemech's Anti-Vibration Tables in Metrology Anti Vibration Table for Contourecord C1600 -14, P-66



In the intricate domain of precision metrology, Dynemech's Anti-Vibration Tables stand as indispensable assets, playing a pivotal role in elevating the accuracy of sensitive measuring instruments. Vibration and Shock Proof Vibration Control Tables exhibit multifaceted significance wrt to their ability to mitigate external vibrations and foster reliability in measurements.

1. Reducing External Vibrations: Dynemech's Anti-Vibration Tables are meticulously designed to eliminate external disturbing frequencies that might jeopardize the precision of sensitive measuring equipment like analytical balances or surface and contour measuring machines. By creating a stable and controlled environment, these tables act as a barrier against disruptive vibrations and shocks, ensuring that measurements are conducted in an optimal setting.

2. Ensuring Reliability of Sensitive Instruments: For sensitive measuring devices to produce accurate and dependable findings, a solid , levelled, vibration free foundation is necessary . Dynemech's anti vibration block any interference from external sources , safeguarding the integrity of measurements. This reliability is essential, especially in industries where precision is paramount.

3. Facilitating Highly Accurate Work: By attenuating external vibrations, these vibration and shock resistant tables create a conducive environment for precision metrology tasks. The Anti Vibration Precision Metrology Equipment Tables ensures optimal performance and peak accuracy of machines like Coordinate Measuring Machines (CMMs), optical comparators , surface roughness testers, and so on.

4. Essential Across Industries: Dynemech's vibration mitigation solutions find significance across a spectrum of industries, from manufacturing and quality control to research and development. In metrology laboratories, clean rooms, and medical research setups, these tables become indispensable tools for achieving accurate and reliable results.

5. Providing Stability and Confidence: The stability, reliability and error free performance in varied installations across the globe offered by Dynemech's Anti-Vibration Tables instills confidence in analysts, researchers, and technicians Professionals may concentrate on their work with assurance that their metrology measuring machines work in a vibration-free zone, contributing to precision, efficiency and operational excellence.

Dynemech's Anti-Vibration Tables are more than just accessories; they are crucial enablers in the pursuit of accuracy in metrology. Dynemech's Vibration Control solutions emerge as silent guardians, providing the necessary support for metrology and quality control precision instruments to perform at their absolute best.

Anti Vibration Table for Contourecord C1600 -14, P-66

Granite base of size: L-1100 B-550 T-50 mm

60x60 mm HR tubular structure

4 nos DLP3 at ground level, 4 nos - 3” wheel

9 nos AV pad between structure and granite base

Front keyboard panel provided for placing

keyboard & mouse over the surface

Monitor Bracket on L.H Rear with swivelling and tilting fecility

Structure- RAL 9002,

Side sheet, door & Key board panel- Graphite Grey

#DynemechMetrology, #PrecisionAccuracy, #VibrationFreeTables, #ReliableMetrology, #ShockProofSolutions

Contact:

Dynеmеch Systеms Pvt Ltd.

Mob: +91-9810760131

Email: Salеs@dynemech.com

www.vibrationmountsindia.com | www.vibrationdampingpads.com



Enhance Performance and Productivity with Dynemech Anti Vibration Insulation Plates



Enhance Performance and Productivity with Dynemech Anti Vibration Insulation Plates

Anti-Vibration Insulation Plates

In the contemporary dynamic industrial environment, there exists a compelling need for machinery that exhibits attributes such as accuracy, precision, greater efficiency, and high-speed. However, the persistent vibrations generated by heavy machinery can lead to several problems, including reduced efficiency, higher maintenance costs, and staff fatigue.

In response to these issues, there has been a notable increase in the adoption of anti-vibration insulating plates. Dynemech anti vibration isolation plates have been purposefully designed to reduce vibrations and establish a stable foundation for machines, leading to enhanced performance and increased productivity.

Dynemech new generation of vibration isolation pads, utilizing advanced synthetically compounded elastomers materials to address issues caused by vibration and structure-borne noise. Our extensive range of vibration isolation pads boast technical and physical attributes, that offers cost-effective and efficient solutions to common vibration problems encountered in modern production machinery and industrial settings.

Vibration Damping

Vibration attenuation is crucial in various sectors, including construction, automotive, manufacturing, and all other industries. It plays a vital role in dissipating energy.

Excessive vibrations can cause wear and tear on machine components, leading to premature failure and increased maintenance costs. Vibrations can disrupt the precision and accuracy of machines, reducing their overall performance. Furthermore, prolonged exposure to vibrations can have detrimental effects on workers, causing fatigue, discomfort, and even long-term health issues.

Vibration damping is crucial for protecting structures and mechanical frameworks from the negative effects of vibrations. It enhances comfort, safety, and overall optimal machine performance for ensuring smooth operation and maximizing productivity.

How do anti-vibration insulation plates work?

Anti-vibration insulation plates, also called anti-vibration pads, absorb / isolate machinery vibrations and dissipate vibrational energy. Made from well-researched elastomeric compounds having excellent damping properties, they act as shock absorbers - they dampen vibrations, distribute energy evenly, and convert it into heat.

The choice of elastomeric material and the design of the anti-vibration pad depend on several factors, including the load capacity of the machine, the frequency of the vibrations, and the desired level of static deflection.

When placed beneath machinery, the anti-vibration insulation plates act as a barrier, preventing the transmission of vibrations to the surrounding environment.

They find application in industrial settings, such as compressors, conveyors, and generators, and in household environments, for appliances like washers and dryers etc.

Benefits of using Dynemech anti-vibration insulation plates

Anti-vibration insulation plates offer several benefits, especially in industrial and mechanical settings.

Efficient Vibration Reduction: Dynemech plates guarantee a steady and seamless operation by effectively reducing machinery vibrations.

Optimized Performance: Minimized vibrations lead to enhanced machinery performance and increased productivity.

Maximizing Machinery Lifespan: Dynemech plates effectively reduce vibrations, resulting in longer-lasting machinery and fewer expenses for repairs or replacements with decreased downtime.

Ensuring Safety and Comfort: By effectively reducing vibrations, a work environment that prioritizes the well-being of employees is established. This not only minimizes fatigue but also significantly lowers the chances of injuries.

Increased Efficiency: In general, the utilization of Dynemech anti-vibration insulation plates leads to improved efficiency, minimised downtime, and significant cost savings for businesses.

Resistance to Various Substances: They are typically made from composite elastomeric materials that can withstand moisture, fuels, lubricating oils, acids, and other substances found on shop floors.

With our wide range of elastomeric options and attention to quality, Dynemech provides customers with reliable solutions tailored to their specific needs. Embrace the power of anti-vibration insulation plates and unlock the full potential of your machinery.

To learn more about Dynemech anti-vibration insulation plates and how they can enhance your operations, visit our website today.

#VibrationControl, #ProductivityBoost, #IndustrialSolutions, #DynemechPerformance, #VibrationIsolation, #EfficientOperations,#WorkplaceSafety, #AntiVibrationTech, #DynemechQuality, #Dynemech, #inuslationsheet, #rubberpad, #insulationplate

Contact:

Dynеmеch Systеms Pvt Ltd.

Mob: +91-9810760131 ; +91-9911145131

Customized Precision: Dynemech's Tailored Anti-Vibration Solutions , Economical Anti Vibration Precision Metrology Table for Contourecord C1600-12/-13, P-65

 Customized Precision: Dynemech's Tailored Anti-Vibration Solutions

Economical Anti Vibration Precision Metrology Table for Contourecord C1600-12/-13, P-65

In the world of precision metrology and vibration isolation , Dynemech stands out by unveiling a realm of customization through its Anti-Vibration Tables.

This article delves into how Dynemech addresses diverse needs by providing tables with different sizes, load capacities, and varied vibration isolation technologies, showcasing the commitment to tailoring solutions for the optimal support of each precision measuring device.

1. Diverse Sizes: Recognizing that dimensions for precision measurement instruments vary, and the tables need to align with the specifics. Dynemech guarantees that every instrument, has a platform that is specially made for it accommodating the spatial requirements wrt to placement and operating the contour and surface measuring machine .

2. Varied Load Capacities: Dynemech's dedication to customisation is seen by the range of load capabilities of their vibration control tables. Because of their adaptability, the tables can meet the unique weight needs of various instruments, guaranteeing their durability, longevity, optimal performance.

3. Advanced Vibration Isolation Technologies: Dynemech prides itself in customising vibration isolation solutions as per the specific problem faced by the user. Whether elastomeric isolation, pneumatic isolation, passive vibration damping systems, or active control systems, Dynemech tailors’ solutions to match the specific vibration control needs of diverse applications.

4. Tailoring to Specific Dimensions: Precision measuring machines often come with unique dimensions and configurations. Dynemech tailor vibration control tables to meet these specific dimensions, providing a snug fit for instruments and eliminating any compromise on stability or functionality. Our tables streamline your workspace by incorporating essential accessories like UPS systems, CPUs, sliding keyboard trays, joysticks, monitor brackets, power strips, cable managers, printer stands, etc., reducing clutter and optimizing space.

5. Ergonomic Requirements: Acknowledging the importance of ergonomic design, Dynemech ensures that its Anti-Vibration Tables are not just functional but also align with the ergonomic requirements of the users. The whole operational experience is improved by this commitment to user comfort, which makes it smooth and effective.

6. Aesthetic Integration: We pay careful attention to the design of our tables, ensuring that they seamlessly complement the appearance of the metrology equipment and laboratories.

7. The Impact on Precision Instruments: The performance of precision measurement instruments is significantly impacted by the customisation that Dynemech's Anti-Vibration Tables offer.

Metrology Machines operating on a stable, tailor-made platform experience heightened accuracy, reliability, and longevity.. The elimination of external disturbing frequencies coupled with the perfect fit, creates an environment where precision is not just an objective goal but a guaranteed outcome.

For Dynemech, customization is essential in the quest for accuracy. Each Vibration Control table is a precisely designed and built providing customized Anti-Vibration Solutions that answer a variety of demands with varying sizes, load capacities, and innovative vibration isolation technologies. Dynemech ensures that each Anti-Vibration Table is not just a support structure but a precision-crafted companion to the instruments it serves. In this customized approach, the synergy between technology and tailored solutions becomes the cornerstone of achieving unparalleled precision in diverse applications.

Economical Anti Vibration Precision Metrology Table for Contourecord C1600-12/-13, P-65

Granite base of size: L-750 B-600 T-30 mm

60x60 mm HR tubular structure

4 nos DLP3 at ground level, 4 nos - 3” wheel

8 nos AV pad between structure and granite base

Front keyboard panel provided for placing

keyboard & mouse over the surface

Monitor Bracket on L.H Rear with swivelling and tilting fecility

Structure- RAL 9002,

Side sheet, door & Key board panel- Graphite Grey

#CustomPrecisionTables, #AntiVibrationSolutions, #MetrologyEquipmentSupport, #ErgonomicVibrationControl, #TailoredVibrationIsolation

Contact:

Dynеmеch Systеms Pvt Ltd.

Mob: +91-9810760131

Email: Sales@dynemech.com /

www.vibrationmountsindia.com

Benefits Galore: High-Precision Anti Vibration Tables for Metrology by Dynemech in Focus Sleekly Dynemech Anti Vibration Precision Metrology Equipment Table For Rondcom Nex P-63



Benefits Galore: Dynemech's Anti-Vibration Tables in Focus

Dynemech's Anti-Vibration/Shock Resistant Tables stand out for their myriad benefits, revolutionizing the landscape of precision measurements and enhancing overall operational efficiency.

1. Improved Measurement Accuracy:

• Dynemech's Anti-Vibration Metrology Tables minimize vibrations and provide a stable environment for sensitive instruments, which significantly improves measurement accuracy.

• The precision engineering of these tables ensures that equipment like Coordinate Measuring Machines (CMMs), Contour and Surface Measuring equipment provide accurate and consistent measurements.

2. Reduced Downtime:

• Dynemech's Vibration Resistant Precision Measurement Tables provide robust vibration isolation, resulting in a more stable working environment and reduced downtime.

• need for reassessment and preventive maintenance also reduces.

3. Enhanced Productivity:

• Stable instruments and accurate measurements improve efficiency for analysts, researchers, and technicians.

• Vibration-free tables allow professionals to focus on their tasks without distractions, increasing productivity.

4. Significant Cost Savings:

• When precise and dependable measurements are obtained in a single attempt, time, energy, and material resources are maximized, leading to significant cost-effectiveness.

• Errors, downtime, and the need for repeated measurements are eliminated, all of which translate into observable cost savings.

5. Confidence in Work Processes:

• Dynemech's Anti-Vibration Tables remove vibrations from the working surface, giving analysts and researchers the confidence to depend on the stability of their instruments.

• This confidence is invaluable in industries where accuracy is critical, like life sciences and medical research setups, metrology laboratories, inspection lines in workshops, calibration labs with instruments requiring low Natural Frequency clean rooms, life sciences & medical research setups and so on.

The benefits of Dynemech's Anti-Vibration Tables, thus extend far beyond mere vibration reduction. They play a pivotal role in elevating measurement accuracy, reducing downtime, enhancing productivity, and contributing to significant cost savings. In environments where precision is critical, these tables emerge as indispensable tools, providing professionals with the confidence and assurance needed to perform their tasks with utmost accuracy and efficiency.

Sleekly Dynemech Anti Vibration Precision Metrology Equipment Table For Rondcom nex P-63

Granite base of size: L-900 B-600 T-50 mm

60x60 mm HR tubular structure with cross member

4 nos DLP3 at ground level, 4 nos - 3” wheel

9 nos AV pad between structure and granite base

Front keyboard panel provided for placing

keyboard & mouse over the surface

Monitor Bracket on L.H Rear with swivelling and tilting fecility

Structure- RAL 9002,

Side sheet, door & Key board panel- Graphite Grey

#DynemechPrecision, #AntiVibrationTables, #MetrologyEquipment,#OperationalEfficiency, #VibrationReduction, #DynemechPrecision, #Metrology, #AntiVibration, #OperationalEfficiency,

Contact:

Dynеmеch Systеms Pvt Ltd.

Mob: +91-9810760131

Email: Salеs@dynemech.com

www.vibrationmountsindia.com | www.vibrationdampingpads.com

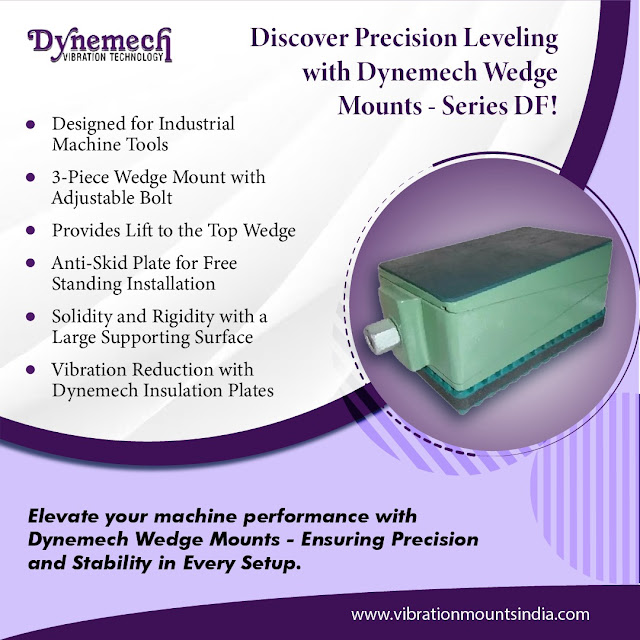

Types of Wedge Mounts: Choosing the Right Fit for Your Machinery



Dynemech Wedge Mounts are designed for highly dynamic and precision industrial machinery that require precision levelling, vibration absorption and fixed connection between the isolator and the machine base.

These wedge mounts come in diverse types, each tailored to specific applications, load requirements and vibration problem faced. Selecting the appropriate wedge mount is paramount to ensuring the optimal performance, stability, alignment and vibration damping in various industrial setups.

Common Types of Wedge Mounts

1.   Bolt-on Wedge Mounts

Bolt-on wedge mounts are engineered for heavy-duty applications demanding maximum stability and load-bearing capacity with precise levelling.  These wedge mounts offer secure attachment to equipment and with its precision levelling mechanism, aligns your machinery like tool room machines, plastic injection moulding machines, pressure die casting machines, shapers etc.





2.   Free Standing Wedge Mounts

Free standing wedge mounts are preferred for their versatility and ease of installation. An adjustable wedge mount that is vibration-proof and has a precise levelling mechanism, a big adjustment stroke, and a function that prevents vibrations from occurring.



Their excellent shock absorption and vibration isolation properties make them the go-to choice for heavy machinery and equipment where minimizing vibrations is crucial.  Fins application in power presses, stamping machines, shearing machines, punching machines etc



3.   Bolt Thru Wedge Mounts

An optimal selection for machines experiencing fluctuating loads, unidirectional load bias, or significant dynamic disturbance pressures. The Bolt thru Precision Leveller is securely attached to both the machine and the ground, providing exceptional vibration and impact isolation capabilities.



Incorporating special engineered elastomers, these mounts excel in absorbing and dissipating vibrations, offering enhanced vibration reduction capabilities. They are indispensable in applications like pressure die casting machines, injection moulding machines, presses, industrial pumps , stamping machines and many more

Factors to Consider When Choosing Wedge Mounts

1.   Load Capacity

Matching or exceeding the weight of the supported equipment is imperative , prevents overloading, which can compromise stability and performance.

2.   Alignment and Levelling

Easy alignment and precise leveling options dictated by machinery and operational requirements. This ensures proper alignment and reduces the risk of machinery damage due to uneven surfaces or misalignment.

3.   Vibration Isolation Capabilities

Evaluate the degree of vibration reduction required and select appropriate vibration isolation sheets accordingly. Different machine , static and dynamic loads and operational behaviour will dictate such selection.

4.   Environmental Conditions

Take into account temperature fluctuations, dampness, chemicals, and oil or solvent exposure. To ensure best performance and endurance, use anti vibration mounts that match your application's environment.

Consulting with Experts for Optimal Selection

Experts or experienced vendors should be consulted for in situations with specific requirements.

Conclusion

Choosing the right wedge mounts ensures equipment stability, machinery performance, and tolling / die and machinery longevity. By evaluating load capacity, flexibility, vibration isolation, and environmental compatibility, you may select application-specific options.

FAQs (Frequently Asked Questions)

1.   What are wedge mounts used for?

 Wedge mounts are employed to offer stability and mitigate vibrations for a diverse array of equipment, including both robust , heavy duty presses and sensitive scientific appliances.

2.   How do I determine the load capacity for wedge mounts?

It is imperative that the load capacity of wedge mounts be equal to or greater than the weight of the machinery being supported to prevent excessive overloading.

3.   Are anti-vibration wedge mounts suitable for all applications?

Anti-vibration wedge mounts are highly effective in reducing vibrations and are especially well-suited for settings that need precision and precise alignment and levelling.

4.   Can wedge mounts be used in outdoor environments?

Indeed, wedge mounts are suitable for outdoor settings, but it is crucial to verify their compatibility with the current climatic conditions in order to preserve excellent performance and durability. The working conditions of the wedge mount can match with the working condition of machinery.

5.   Are wedge mounts reusable?

Wedge mounts are specifically engineered to serve many purposes and may be utilised again, provided they are in optimal condition and suitable with the machinery being supported.
